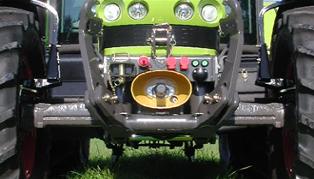

Sauter Front System for Claas Ares 547-577

Front linkage category  2
Lifting power at catch hook (kg) 3500
Straight-through lifting power at implement centre of gravity 800mm from coupling points (kg) 2000
Double-acting cylinders Standard
Reversing valve Standard
Catch hooks (Walterscheid) Cat. 3L
Bottom links, removable and pivotable without tools, float adapter for bottom links Standard
Top link Cat. 2
Top link support Standard
Underslung frame and/or additional support to the rear axle -

Front PTO shaft speed (RPM)                                                                                 Sense of rotation in driving direction

1000      Right

Max PTO power kW (HP) 125 (170)
Max admissable power kW (HP) 110 (150)
PTO shaft profile DIN 9611 1 3/8"
